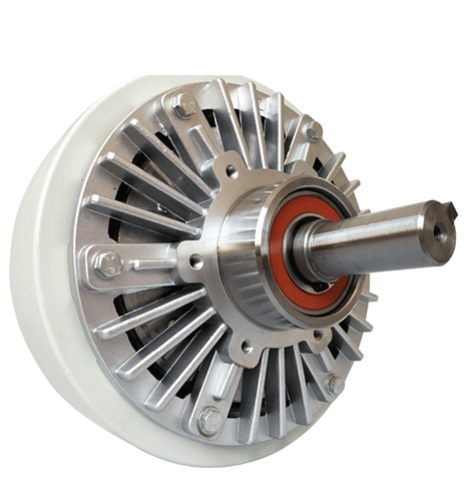

What Is a Magnetic Powder Brake?
A Magnetic Powder Brake is a type of industrial braking device that uses magnetic powder and electromagnetic fields to generate controllable resistance and torque. Unlike traditional friction brakes, it offers precise, smooth, and contactless torque control, making it ideal for high-speed and high-precision applications.
Key Features
Smooth and Stable Torque Output
Ideal for tension control in web processing industries.
Contactless Operation
Reduced wear and longer lifespan compared to mechanical brakes.
Fast Response Time
Immediate torque adjustment enables high-precision control.
Compact and Efficient Design
Easy to install and integrate into existing equipment.
Types of Magnetic Powder Brakes
Magnetic powder brakes are available in various configurations to suit different industrial applications and performance requirements. While all types share the same basic working principle—using magnetic powder and electromagnetic force to generate torque—each variant is designed with specific use cases in mind.
Below are the most common types of magnetic powder brakes:
1. Shaft-Mounted Magnetic Powder Brake
This is the most widely used type. It features a compact design where the rotor is directly mounted on the rotating shaft of the machine. This type is ideal for:
Printing and packaging machinery
Film and paper processing equipment
Medium-to-high speed applications requiring steady tension control
Advantages:
Easy to install and maintain
Space-saving design
Suitable for continuous operations
2. Flange-Mounted Magnetic Powder Brake
In this version, the brake is mounted via a flange plate, providing a more rigid and fixed installation. It's often used in heavy-duty or fixed machinery where torque stability is crucial.
Best suited for:
Winding/unwinding systems
Conveyor tension management
Load simulation benches
Advantages:
Stronger structural integration
Reduced vibration
Better torque transmission under load
3. Water-Cooled Magnetic Powder Brake
Designed to operate under high load and high temperature, this type includes a built-in water cooling system to maintain optimal working temperature. It is commonly found in testing systems or environments with continuous braking demand.
Applications:
Motor and gearbox testing systems
Laboratory torque simulations
High-torque industrial equipment
Advantages:
Superior heat dissipation
Maintains stable torque during long-term use
Increases brake life and reliability
4. Air-Cooled Magnetic Powder Brake
This variation uses an integrated fan or passive airflow design for cooling. It is ideal for moderate applications that require consistent torque but not extreme heat resistance.
Use cases:
Low to medium torque control
General-purpose automation machinery
Advantages:
No need for external cooling systems
Lightweight and compact
Lower maintenance
5. Custom Torque Range Brakes
Some magnetic powder brakes are custom-built to meet unique torque requirements, from ultra-low torque for delicate film materials to high-torque setups for heavy industrial loads.
Custom options may include:
Torque capacity range (e.g. 0.5Nm to over 1000Nm)
Input voltage compatibility
Mounting method
Shaft diameter and length
Applications of Magnetic Powder Brakes in Modern Industry
Magnetic powder brakes have become an essential component in modern industrial systems due to their precise torque control, fast response, and smooth operation. Their ability to maintain constant tension and handle variable speeds makes them ideal for a wide range of applications across diverse sectors.
Below are some of the most common and impactful uses of magnetic powder brakes in today's manufacturing and automation environments:
1. Printing Industry
In printing processes, especially in high-speed roll-to-roll operations, maintaining constant web tension is critical for image alignment and ink consistency. Magnetic powder brakes provide smooth tension control during:
Paper feed and take-up systems
Label printing and slitting
Newspaper and magazine production
Benefits:
Eliminates paper wrinkling or tearing
Ensures print quality and registration accuracy
2. Packaging Machinery
Whether it's plastic film, aluminum foil, or laminated materials, consistent tension is key to efficient and accurate packaging. Magnetic powder brakes are used in:
Horizontal and vertical form-fill-seal machines
Wrapping and pouch-making systems
Film winding/unwinding stations
Benefits:
Reduces film waste
Maintains consistent packaging speed
Improves product appearance
3. Textile and Nonwoven Fabric Processing
In textile machinery, tension control affects the quality of yarn, fabric, and other materials. Magnetic powder brakes are commonly installed in:
Spinning and winding machines
Fabric tensioning and rewinding systems
Nonwoven roll processing
Benefits:
Prevents fabric stretching or distortion
Supports uniform roll formation
4. Wire and Cable Manufacturing
During cable production, precise tension ensures uniform insulation thickness and prevents cable damage. Magnetic powder brakes are ideal for:
Cable coiling/uncoiling systems
Wire extrusion lines
Tension-controlled rewinding
Benefits:
Improves dimensional accuracy
Enhances product consistency
5. Battery and Electronics Manufacturing
In battery production and electronics assembly, tension control is vital for handling thin films, separators, and conductive materials. Magnetic powder brakes are applied in:
Lithium battery electrode winding
Foil feeding systems
Flexible circuit board manufacturing
Benefits:
Maintains delicate material integrity
Increases process yield
6. Motor Testing and Torque Simulation
Magnetic powder brakes also serve as load devices in motor testing and torque simulation applications, allowing precise loading under controlled conditions.
EV motor and gearbox testing
Performance evaluation benches
Dynamic torque simulation platforms
Benefits:
Enables accurate performance analysis
Simulates real-world load conditions
7. Film, Tape, and Adhesive Production
During the coating, slitting, and converting processes of adhesive tapes and protective films, tension control ensures edge alignment and roll quality.
Applications include:
BOPP, PET, PVC film winding
Adhesive coating lines
Tape slitting and inspection
How Does a Magnetic Powder Brake Work?
At the heart of every magnetic powder brake lies a simple yet highly effective principle: using a magnetic field to control the behavior of fine metallic powder, which in turn produces a smooth and adjustable braking force. This contactless method of torque transmission makes magnetic powder brakes both reliable and responsive, especially in dynamic industrial environments.
Core Components and Structure
A typical magnetic powder brake consists of three main elements:
Rotor (Input Shaft): Connected to the rotating load or driven equipment.
Stator (Housing): Fixed to the machine frame, it houses the coil and supports the overall structure.
Magnetic Powder: A special ferromagnetic material placed in the gap between the rotor and stator.
Step-by-Step Working Principle
Idle State (No Current Applied):
When the brake is powered off, the magnetic powder remains loose and does not transmit torque. The rotor and stator move independently with minimal resistance.
Activation (DC Voltage Applied):
When a direct current (DC) is applied to the built-in coil, it generates a magnetic field across the air gap where the powder is located.
Magnetic Powder Alignment:
Under the influence of the magnetic field, the fine powder particles become magnetically polarized and start forming chain-like structures. These chains create a mechanical link between the rotor and the stator.
Torque Transmission Begins:
As the magnetic bonds strengthen, the powder resists relative motion between the rotor and stator. This creates braking torque proportional to the input current.
Torque Adjustment:
By simply increasing or decreasing the electrical current, the magnetic field strength changes, allowing precise control of the braking force.
Key Performance Characteristics
Proportional Control: Torque output changes linearly with current input, allowing for fine-tuned control.
Fast Response: Instantaneous magnetic reaction ensures quick torque application or release.
No Physical Wear Surfaces: Unlike friction brakes, there’s no physical contact that causes wear and tear.
Smooth Operation: No jerks or shocks, even at low speeds or during stop/start cycles.
Cooling Methods for Heat Dissipation
Because braking generates heat, magnetic powder brakes are available in various cooling configurations:
Air-Cooled: Suitable for light to medium-duty operations. Uses fins or fans to dissipate heat.
Water-Cooled: Designed for continuous or high-load applications where efficient thermal management is critical.
Benefits of Using Magnetic Powder Brakes for Torque Control
Torque control is a critical function in many industrial processes, especially where precision, consistency, and responsiveness are required. Magnetic powder brakes offer a powerful solution by providing adjustable, smooth, and highly controllable torque—far beyond what traditional mechanical or hydraulic systems can achieve.
Here are the key benefits of using magnetic powder brakes for torque control:
1. Precise and Linear Torque Output
Magnetic powder brakes deliver torque that is directly proportional to the input current, allowing for fine adjustments with exceptional accuracy. This is essential in industries where tension, speed, or pressure must be maintained within narrow limits, such as printing, film processing, or motor testing.
Advantage:
Real-time torque modulation with minimal lag
Ideal for sensitive materials and high-precision tasks
2. Smooth and Stable Operation
The use of magnetic powder ensures shock-free and vibration-free torque transmission, even at very low or variable speeds. This results in smoother product handling, reduced wear on mechanical parts, and improved product consistency.
Advantage:
Prevents material stretching, breakage, or misalignment
Suitable for start-stop operations and delicate web control
3. No Mechanical Friction or Contact Wear
Unlike conventional braking systems that rely on friction, magnetic powder brakes operate without direct contact between moving parts. This dramatically reduces wear, eliminates dust generation, and extends the service life of both the brake and surrounding machinery.
Advantage:
Lower maintenance requirements
Cleaner and quieter operation
Longer equipment lifespan
4. Fast Response Time
The electromagnetic activation of the powder is nearly instantaneous, enabling quick torque engagement and release. This responsiveness is particularly valuable in high-speed automation lines and dynamic control systems.
Advantage:
Better synchronization in automated processes
Enhanced production efficiency and control
5. Wide Torque Range with High Repeatability
Magnetic powder brakes support a wide range of torque capacities and can repeatedly deliver the same output under the same conditions. This repeatability is essential for processes that rely on consistency, such as quality testing or web tensioning.
Advantage:
Reliable performance in repeat cycles
Supports a wide range of production tasks with one device
6. Compatibility with Automated Systems
Thanks to their electrically controlled design, magnetic powder brakes are easily integrated into PLC systems, feedback loops, and tension control modules. This allows for centralized and automated torque regulation across complex production environments.
Advantage:
Easy integration with modern industrial control systems
Enables remote monitoring and automatic torque adjustment
7. Energy Efficiency and Thermal Stability
Because the brake only consumes energy when torque is applied, it is more efficient compared to continuously running mechanical systems. Additionally, optional air or water cooling systems allow the brake to maintain performance even during prolonged use.
Advantage:
Lower energy consumption
Reliable under high-speed or long-duration operations
Why Magnetic Powder Brakes Are Ideal for Precision Testing Equipment
In industries that rely on accurate torque measurement, load simulation, and dynamic performance evaluation, precision testing equipment must meet the highest standards of consistency and control. Magnetic powder brakes are widely used in such setups due to their ability to deliver repeatable, stable, and finely adjustable torque under varying conditions.
Here's why magnetic powder brakes have become the preferred choice for precision testing systems:
1. Accurate and Repeatable Load Simulation
Testing equipment often requires a controllable and repeatable load to simulate real-world operating conditions. Magnetic powder brakes allow users to adjust torque output with great precision, simply by varying the input current. This enables highly accurate simulation of various load scenarios.
Application Examples:
Motor performance testing
Gearbox durability tests
Transmission torque simulation
2. Smooth Torque Across All Speeds
Magnetic powder brakes provide stable torque even at very low rotational speeds, which is especially important in testing environments where equipment behavior under slow or stop-start conditions must be evaluated.
Benefit:
No sudden jumps or torque spikes
Ideal for start-up, shutdown, or idle-condition testing
3. Fast Response for Dynamic Testing
When testing components under fluctuating or transient conditions, rapid torque adjustments are essential. Magnetic powder brakes respond almost instantaneously to changes in electrical input, making them suitable for:
Acceleration and deceleration tests
Torque fluctuation simulations
Real-time feedback loop systems
4. Low Mechanical Wear Ensures Long-Term Stability
Because magnetic powder brakes operate without direct friction between solid components, they experience minimal mechanical wear. This makes them highly reliable for long-duration test cycles, ensuring the consistency and longevity of test results.
Ideal for:
Endurance and lifecycle testing
Quality assurance in high-volume production
24/7 continuous testing labs
5. Thermal Management for Extended Use
Many testing setups require the brake to apply consistent load for long periods, which generates heat. Magnetic powder brakes can be equipped with air or water cooling systems to maintain performance and prevent overheating, even under full load.
Advantages:
Enhanced safety
Maintains torque accuracy over time
Supports high-duty-cycle testing applications
6. Compact and Easy to Integrate
Magnetic powder brakes are compact in size and simple to mount, making them easy to integrate into test rigs, benches, or automated testing machines. Their modular design allows flexible installation in various mechanical layouts.
7. Digital Control Compatibility
Because torque is controlled via electric current, magnetic powder brakes integrate easily with programmable systems such as PLCs, microcontrollers, and automated testing software. This enables full digital control, real-time data collection, and remote operation.
Enabling Smarter Testing with Magnetic Powder Brakes
Whether used in electric motor testing, material durability analysis, or torque endurance validation, magnetic powder brakes provide the precision, responsiveness, and stability needed to deliver trustworthy results. Their unique combination of features makes them a cornerstone technology in modern test laboratories and quality assurance environments.
Magnetic Powder Brake vs. Traditional Braking Systems
When it comes to industrial torque control and braking applications, selecting the right braking technology can significantly affect performance, efficiency, and equipment lifespan. While traditional braking systems—such as mechanical friction brakes and hydraulic brakes—have long been used in various sectors, magnetic powder brakes are increasingly preferred in modern, high-precision environments.
Below is a comprehensive comparison between magnetic powder brakes and conventional braking systems:
1. Torque Control Precision
Magnetic Powder Brake:
Offers precise, linear torque control proportional to the input current. It excels in applications where maintaining a specific tension or load is crucial, such as in printing, web handling, and motor testing.
Traditional Braking Systems:
Torque is often less consistent and harder to regulate, especially at lower speeds. Manual adjustments or complex hydraulic systems are required to modify torque output.
Winner: Magnetic Powder Brake
Ideal for scenarios requiring high-accuracy, real-time torque adjustments.
2. Response Time
Magnetic Powder Brake:
Provides quick and smooth response, making it suitable for dynamic load changes or automated systems. Activation and deactivation happen almost instantly through electronic signals.
Traditional Brakes:
Mechanical or hydraulic systems have slower response times, especially in high-speed or start-stop applications. Reaction delays can affect production efficiency.
Winner: Magnetic Powder Brake
Essential for high-speed and automated systems.
3. Wear and Maintenance
Magnetic Powder Brake:
Operates with minimal mechanical contact, which significantly reduces wear and maintenance requirements. The powder medium undergoes little degradation under normal use.
Traditional Brakes:
Rely on physical friction between pads, discs, or drums. Components wear down over time, requiring frequent maintenance, replacements, and downtime.
Winner: Magnetic Powder Brake
Lower maintenance cost and longer service life.
4. Smooth Operation at Low Speeds
Magnetic Powder Brake:
Maintains stable torque even at very low or near-zero speeds, which is essential in applications like tension control, winding, or precision testing.
Traditional Brakes:
Often struggle with torque consistency at low speeds, leading to jerky motion or control loss.
Winner: Magnetic Powder Brake
Better performance across the full speed range.
5. Integration with Automation Systems
Magnetic Powder Brake:
Easily integrated into digital and automated control systems. Compatible with PLCs, sensors, and feedback loops for closed-loop control.
Traditional Brakes:
Typically require manual or analog control. Integrating them into smart systems can be more complex and costly.
Winner: Magnetic Powder Brake
Better suited for Industry 4.0 and smart factories.
6. Cooling and Heat Management
Magnetic Powder Brake:
Available in air-cooled and water-cooled versions, designed to dissipate heat efficiently even under continuous load.
Traditional Brakes:
Tend to generate significant heat during braking. Without proper cooling, this can lead to performance loss or damage.
Winner: Magnetic Powder Brake
Superior thermal stability in continuous or heavy-duty applications.
Summary Table: Magnetic Powder vs. Traditional Brakes
| Feature | Magnetic Powder Brake | Traditional Braking Systems |
|---|---|---|
| Torque Control Precision | High | Moderate to Low |
| Response Time | Fast | Moderate to Slow |
| Wear and Maintenance | Low | High |
| Low-Speed Performance | Excellent | Unstable |
| Automation Integration | Seamless | Complex |
| Heat Management | Efficient (Air/Water) | Less Efficient |
How to Choose the Right Magnetic Powder Brake for Your Machine
Selecting the most suitable magnetic powder brake for your application is essential to ensure optimal performance, reliability, and longevity. With a wide range of models and specifications available, understanding your system’s requirements will help you make an informed decision.
Here are the key factors to consider when choosing the right magnetic powder brake:
1. Torque Requirements
Start by determining the torque range your machine needs under normal and peak load conditions. Magnetic powder brakes are available in various torque ratings, typically ranging from a few Nm to several hundred Nm.
Tips:
Always select a model that covers at least 120% of your system’s maximum torque demand to allow safety margin.
If your application involves frequent torque changes, prioritize models with stable linear torque output.
2. Rotational Speed
The maximum operating speed (RPM) of your system should match the brake’s specifications. Using a brake beyond its rated speed may reduce efficiency and shorten its lifespan.
Tip:
Check for both maximum input speed and recommended continuous operation speed when selecting a brake.
3. Duty Cycle and Working Environment
If the brake is used in continuous operation, such as in printing or slitting lines, or if it operates under high-frequency torque cycling, you will need a model with excellent thermal management.
Cooling Options:
Air-cooled brakes are suitable for intermittent or light-duty use.
Water-cooled brakes are ideal for high-duty or continuous-load conditions.
4. Mounting and Space Constraints
Evaluate the available installation space and ensure that the selected brake fits your machine's layout. Consider:
Shaft size compatibility
Mounting hole configuration
Cooling pipe connections (for water-cooled models)
5. Control System Integration
Ensure that the magnetic powder brake can be easily integrated with your existing control system, especially if you use PLCs or tension controllers. Most models are compatible with standard DC power control, but advanced systems may benefit from PWM or closed-loop control compatibility.
6. Material Compatibility and Application Specifics
If your machine processes sensitive materials like film, paper, or foil, choose a brake with ultra-smooth torque control to prevent stretching or tearing. For testing or simulation applications, prioritize quick-response and high-repeatability models.
Making the Smart Investment
By carefully analyzing your torque demands, speed requirements, duty cycle, and integration needs, you can select a magnetic powder brake that delivers consistent performance and long-term reliability.
Whether you're building a precision testing rig or upgrading an automated production line, the right brake selection is critical to process stability and product quality.
Complete Overview & Final Recommendation
Throughout this guide, we've explored the fundamentals and advantages of magnetic powder brakes, including:
What they are and how they function
Different types available in the market
Applications across modern industry sectors
Working principles and operational benefits
Comparisons with traditional braking systems
Tips for choosing the right model
If you're seeking a reliable and experienced manufacturer of magnetic powder brakes, look no further than Ruian Chuangbo Machinery Co., Ltd.
As a specialized factory with years of expertise in torque control systems, Ruian Chuangbo offers a wide selection of high-quality magnetic powder brakes tailored for various industries—including packaging, printing, textiles, and testing equipment. With a commitment to precision manufacturing, technical support, and custom solutions, we’re here to help your machines run smoother, faster, and more efficiently.Partner with Ruian Chuangbo Machinery Co., Ltd. today—where innovation meets performance.
