Magnetic Powder Brake: Features, Types, Applications and more

What is Magnetic Powder Brake?

A Magnetic Powder Brake is an advanced braking system that utilizes magnetic fields to create resistance through the friction of a specially designed powder material. Unlike traditional friction brakes that rely on mechanical contact between surfaces, magnetic powder brakes work by applying a magnetic field to a layer of magnetic powder, which then generates the necessary resistance to control rotational speed or torque.

The brake is made up of several key components, including a magnetic field generator (usually electromagnets), a rotor, and the magnetic powder itself. The magnetic powder is typically suspended within a housing and, when exposed to the magnetic field, becomes agglomerated to produce varying levels of resistance. The strength of the magnetic field determines the torque or braking force applied. These brakes offer precise and adjustable control without physical wear, making them ideal for applications where longevity and reliability are critical.

Importance of Magnetic Powder Brakes in Industrial Applications

Magnetic powder brakes play a crucial role in modern industrial machinery, offering several advantages that enhance productivity and operational efficiency. Below are some of the primary reasons why these brakes are essential in industrial applications:

Precise Torque Control

Magnetic powder brakes provide highly accurate and consistent torque control, essential in industries like printing, packaging, and textile manufacturing. By adjusting the strength of the magnetic field, operators can control the amount of braking force applied, ensuring smooth and consistent operation.

 Wear-Free Operation

Since magnetic powder brakes do not rely on physical contact between moving parts, there is minimal wear and tear, significantly extending the lifespan of both the brake system and the machinery. This results in fewer maintenance needs and lower downtime.

High Reliability and Durability

Magnetic powder brakes are known for their reliability and long service life. Their robust design and the absence of physical contact make them more durable compared to traditional braking systems that are prone to friction-related damage.

Versatility Across Applications

From tension control in winding and unwinding processes to speed regulation in conveyor systems, magnetic powder brakes are versatile and can be tailored for a variety of applications. They are commonly used in industries such as printing, automotive, textiles, packaging, and electronics.

Reduced Maintenance and Operating Costs

Due to their wear-free operation and minimal maintenance requirements, magnetic powder brakes can help companies reduce operational costs. With fewer parts to replace or maintain, businesses can achieve higher efficiency and profitability.

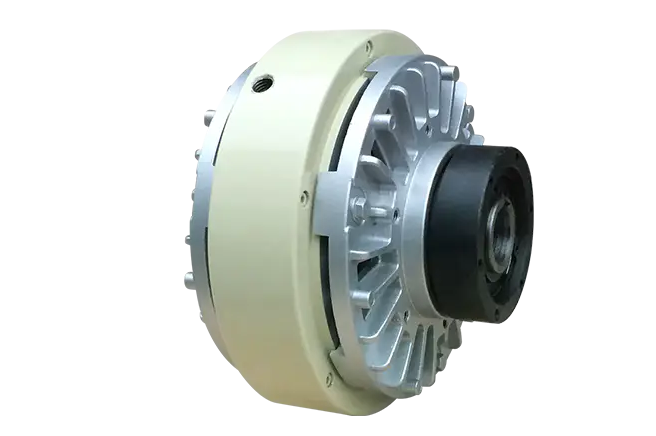

Importance of Magnetic Powder Brakes in Industrial Applications

Function of Magnetic Powder Brakes

Magnetic powder brakes operate based on the principle of electromagnetic induction, using the magnetic field generated by an electromagnet to control the resistance in the brake. Here's how they function:

Magnetic Field Generation

The brake contains an electromagnet that generates a magnetic field. When electricity flows through the electromagnet, it creates a magnetic field within the brake system.

Powder Suspension

Inside the brake assembly, a layer of magnetic powder is suspended. The powder is made up of small, magnetic particles that can respond to the magnetic field. The powder is typically encapsulated within a housing, with the rotor moving freely within it.

Formation of Resistance

When the electromagnet is activated, the magnetic field causes the powder particles to align and agglomerate, forming a solid-like mass. This agglomeration increases friction and resistance, thus slowing down or stopping the rotor's movement. The amount of resistance generated depends on the strength of the magnetic field.

Adjustable Torque Control

The magnetic field strength can be adjusted to control the amount of braking force applied. By varying the current flowing through the electromagnet, operators can precisely control the torque applied to the system, which is essential for applications requiring constant tension or speed control.

Non-Contact Braking

One of the key features of magnetic powder brakes is that the braking process happens without any physical contact between the moving parts. This reduces the risk of friction wear and tear, which is common in traditional braking systems, ensuring longer system life and reduced maintenance costs.

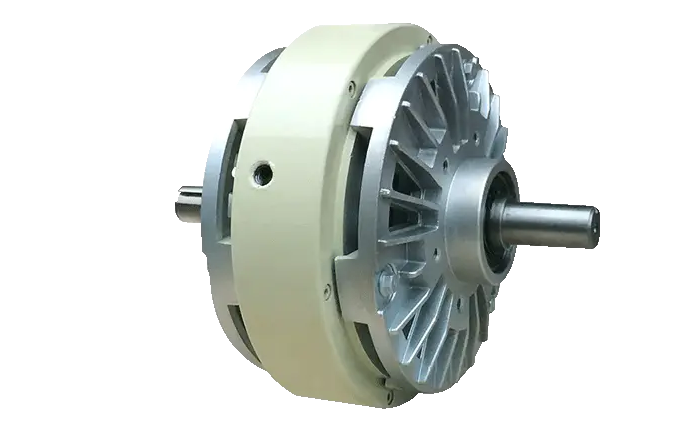

Function of Magnetic Powder Brakes

Types of Magnetic Powder Brakes and their Applications

Magnetic powder brakes come in several types, each suited for different industrial needs. These brakes are essential for precise torque control and smooth operation in a variety of applications. Understanding the different types of magnetic powder brakes can help industries select the right braking solution for their specific requirements.

Constant Torque Magnetic Powder Brakes

These brakes are designed to maintain a constant braking force regardless of speed variations. They provide a steady and reliable torque, making them ideal for applications where consistent tension control is crucial.

Applications:

      Winding and Unwinding: Used in processes like printing, textiles, and packaging where maintaining constant tension is essential to avoid damage to materials.

      Conveyor Systems: Helps regulate speed and torque in automated systems to prevent overload or sudden stops.

Variable Torque Magnetic Powder Brakes

Variable torque magnetic powder brakes offer adjustable torque, allowing operators to modify the braking force as needed. These brakes are ideal for systems where the required braking force varies depending on the operational conditions.

Applications:

      Automated Manufacturing: Used in machinery where different processes require varying levels of braking force, such as in automatic spooling or textile machines.

      Printing Presses: In printing applications, the torque needs to be adjusted depending on the material being printed.

Automatic Control Magnetic Powder Brakes

These brakes feature an automatic control mechanism that adjusts the braking force based on system requirements. Automatic control brakes often include sensors and feedback systems to optimize torque in real-time.

Applications:

      High-Speed Production Lines: In industries like automotive and electronics, where quick adjustments to braking torque are needed without manual intervention.

      Tension Control in Continuous Process Lines: Applied in industries that deal with long, continuous production processes, such as film extrusion and coating lines.

Manual Control Magnetic Powder Brakes

Manual control magnetic powder brakes give operators the flexibility to adjust the braking force by hand. These are typically used in applications where manual adjustments are necessary for a customized solution.

Applications:

      Small Scale Operations: Suitable for smaller production lines or applications where high levels of precision are not required but manual control is still essential.

      Laboratory Testing: Used in testing environments where controlled, adjustable braking force is necessary for experimentation.

Benefits of Using Magnetic Powder Brakes

Magnetic powder brakes offer numerous advantages that make them highly desirable for a wide range of industrial applications. Below are some key benefits of using these advanced braking systems:

Precise Torque Control

One of the primary advantages of magnetic powder brakes is their ability to provide precise torque control. The torque can be adjusted based on the needs of the application, ensuring that the machinery operates smoothly without any inconsistencies in braking force. This is especially important in industries like printing, textiles, and packaging, where tension control is critical.

      Benefit: Enables consistent operation and reduces the risk of damage to delicate materials.

Wear-Free Operation

Unlike traditional friction brakes, magnetic powder brakes operate without any physical contact between moving parts. This non-contact design results in less wear and tear, leading to longer service life and reduced maintenance. In addition, the absence of friction minimizes the chances of overheating and mechanical failure.

      Benefit: Low maintenance, longer operational life, and more reliability in the long run.

Flexibility and Versatility

Magnetic powder brakes are versatile and can be adapted to a wide variety of industrial applications. They come in different types that can offer both constant and variable torque control. This flexibility allows businesses to use magnetic powder brakes across multiple stages of the production process, from winding and unwinding to tension control.

Benefit: Suitable for a wide range of industries, including textiles, printing, electronics, and automotive manufacturing.

Increased Safety

Since magnetic powder brakes do not rely on physical contact to generate braking force, they are safer than traditional friction-based brakes. There is a reduced risk of sparks, overheating, and mechanical failure, making them ideal for use in high-speed systems or explosive environments.

      Benefit: Enhanced safety due to the non-contact nature of the braking system.

Cost-Effectiveness

Despite their advanced technology, magnetic powder brakes can be a cost-effective solution for many industrial applications. Their low maintenance costs, long lifespan, and energy efficiency contribute to overall cost savings, making them a valuable investment for companies looking to optimize production processes.

      Benefit: Reduces downtime, lowers maintenance costs, and increases operational efficiency.

Better Control in Continuous Processes

In industries with continuous production lines such as film extrusion, steel rolling, or coating lines, magnetic powder brakes offer better control over the tension and speed of materials. This allows for high precision in long-run production processes, ensuring that materials are processed without damage.

      Benefit: Facilitates smooth and consistent control in continuous production environments, improving product quality.

Eco-Friendly and Sustainable

As magnetic powder brakes rely on electromagnetic fields instead of physical contact, they produce less friction, which means less wear and fewer byproducts. This contributes to a more environmentally friendly braking solution, reducing material waste and supporting sustainable manufacturing practices.

      Benefit: A greener alternative compared to traditional friction-based brakes, helping companies meet sustainability goals.

Types of Magnetic Powder Brakes and Their Applications

Magnetic Powder Brake vs Other Brake Systems

When selecting a braking system for industrial applications, it is crucial to understand the differences between Magnetic Powder Brakes and other common brake systems. Each system has its own advantages, disadvantages, and ideal applications. By comparing magnetic powder brakes with traditional friction brakes, electromagnetic brakes, and hydraulic brakes, we can better understand when to use each type.

Magnetic Powder Brake vs Traditional Friction Brakes

Magnetic Powder Brakes and traditional friction brakes both serve the same fundamental purpose—slowing down or stopping machinery. However, they operate very differently.

Key Differences:

      Operation Mechanism: Magnetic powder brakes use a non-contact method, where magnetic fields cause friction through powder particles, resulting in smooth, adjustable resistance. In contrast, traditional friction brakes rely on physical contact between friction materials (such as brake pads and discs), which leads to wear over time.

      Wear and Tear: One of the most significant advantages of magnetic powder brakes is their wear-free operation. Because there is no physical contact, the system is not subject to the same level of wear and tear as traditional friction brakes. This results in less maintenance and longer service life.

      Heat Generation: Traditional friction brakes generate heat due to constant physical contact, which can result in overheating and performance degradation. Magnetic powder brakes, being non-contact, generate less heat, providing better performance in high-speed operations.

Best For:

      Magnetic Powder Brakes: Ideal for applications that require precise, continuous tension control and where minimizing downtime is critical.

      Friction Brakes: Better suited for high-force applications where precise control is not as critical and the braking system is regularly serviced or replaced.

Magnetic Powder Brake vs Electromagnetic Brakes

Electromagnetic Brakes work by using electromagnetic fields to generate braking force. These brakes operate similarly to magnetic powder brakes but without the use of powder. Instead, they use a fixed, metallic braking element and an electromagnet to induce resistance.

Key Differences:

      Control Precision: Magnetic powder brakes allow for fine-tuned, adjustable torque based on the magnetic field’s strength. Electromagnetic brakes typically provide less precise control of braking force.

      Response Time: Magnetic powder brakes are often slower to respond than electromagnetic brakes, which can adjust more rapidly to changes in braking demands.

      Maintenance and Durability: Since electromagnetic brakes rely on physical contact between the magnet and the braking element, they tend to experience more wear compared to magnetic powder brakes, which operate without direct contact.

Best For:

      Magnetic Powder Brakes: Applications where precise, adjustable, and reliable torque control is essential, especially in industries like printing, textile, and conveyor systems.

      Electromagnetic Brakes: Suitable for applications requiring rapid response times and where fine-tuned control is less critical.

Magnetic Powder Brake vs Hydraulic Brakes

Hydraulic Brakes use pressurized fluid to apply force to a braking mechanism. These systems are commonly found in vehicles and large industrial machines.

Key Differences:

      Force Generation: Hydraulic brakes generate force through fluid pressure, typically delivering high levels of braking force. Magnetic powder brakes, on the other hand, generate resistance through the interaction of magnetic fields and powder particles, offering less direct braking force but with fine-tuned control.

      Size and Weight: Hydraulic brakes are generally larger and heavier than magnetic powder brakes. This makes magnetic powder brakes more suitable for smaller, compact machinery where space is limited.

      Energy Efficiency: Magnetic powder brakes are more energy-efficient compared to hydraulic brakes. Hydraulic systems require continuous pressurization, which can be energy-intensive, while magnetic powder brakes consume power only when adjusting the braking force.

Best For:

      Magnetic Powder Brakes: Ideal for smaller-scale operations or systems that require adjustable, non-contact braking. They are perfect for tension control in processes like winding and unwinding or speed regulation.

      Hydraulic Brakes: Best for large, heavy-duty machinery that requires significant braking force, such as in industrial presses or vehicle braking systems.

Magnetic Powder Brake vs Pneumatic Brakes

Pneumatic Brakes use air pressure to apply braking force. Pneumatic systems are widely used in a variety of industrial and transport applications.

Key Differences:

      Braking Force and Control: Pneumatic brakes generate force through compressed air, offering a fast response but less precise control compared to magnetic powder brakes. Magnetic powder brakes excel in providing adjustable torque with more control over the braking force.

      Maintenance Needs: Pneumatic brakes require regular maintenance, including checking for leaks in the air system, and are more vulnerable to environmental contaminants. Magnetic powder brakes, in contrast, have low maintenance needs and do not suffer from air contamination issues.

      Energy Source: Pneumatic brakes rely on compressed air, which can require a constant energy supply. Magnetic powder brakes use electrical energy for control, which can be more energy-efficient in many applications.

Best For:

      Magnetic Powder Brakes: Optimal for applications requiring precise torque control with minimal maintenance, such as printing, winding, and tension control.

      Pneumatic Brakes: Suitable for applications where speed and force are more important than precise control, such as in transportation or heavy machinery.

How Magnetic Powder Brakes Work

Basic Working Principle

Magnetic Powder Brakes rely on the principle of magnetic fields interacting with magnetic powder to generate friction. When an electromagnet is activated, it produces a magnetic field that influences the suspended powder particles inside the brake housing. This interaction causes the powder to agglomerate and create a resistance that applies braking force to the rotor or shaft. The strength of this magnetic field can be adjusted, allowing for precise control over the braking force, also known as torque.

      Electromagnet Activation: When electricity flows through the electromagnet, it creates a magnetic field.

      Magnetic Powder Suspension: The brake contains a layer of magnetic powder that is suspended inside the housing.

      Torque Generation: The magnetic field causes the powder to clump together, which increases resistance and generates the braking force needed to slow down or stop the rotating components.

This system is highly effective because it doesn't require physical contact between moving parts, reducing wear and tear and extending the lifespan of the braking system.

Key Components of a Magnetic Powder Brake

The main components of a magnetic powder brake include:

      Electromagnet: The core component that generates the magnetic field. The strength of the magnetic field can be adjusted by changing the current flowing through the electromagnet.

      Magnetic Powder: Fine, specially designed particles that respond to the magnetic field. These particles agglomerate in the presence of the magnetic field, creating friction.

      Rotor: The part of the system that is slowed down or stopped by the braking force. The rotor is usually connected to a shaft or drum that needs to be controlled.

      Brake Housing: The enclosure that holds the magnetic powder and rotor. The housing is designed to prevent contamination and ensure efficient braking.

      Control Mechanism: An electrical or manual control system that allows operators to adjust the strength of the magnetic field and, consequently, the amount of braking force applied.

Adjustable Torque Control

One of the standout features of magnetic powder brakes is the ability to adjust the torque (braking force) applied to the system. By increasing or decreasing the current running through the electromagnet, the magnetic field’s strength is altered, which in turn changes the level of resistance generated by the magnetic powder.

      Higher Magnetic Field Strength: More torque is applied, resulting in a stronger braking force.

      Lower Magnetic Field Strength: Less torque is applied, allowing the rotor to rotate more freely.

This adjustability makes magnetic powder brakes highly suitable for applications where consistent and precise control is needed, such as in tension control systems for printing or winding and unwinding operations.

Non-Contact Braking System

One of the key advantages of magnetic powder brakes is their non-contact operation. Unlike traditional friction brakes, which rely on the physical contact of brake pads and discs, magnetic powder brakes operate without direct interaction between moving parts. This non-contact design significantly reduces the wear and tear on the system, extending its service life and reducing maintenance needs.

      Reduced Friction: The braking force is generated by the interaction of the magnetic field and powder, rather than physical friction.

      No Overheating: Since there is no direct contact, the system generates less heat, reducing the risk of overheating and increasing system longevity.

This non-contact braking mechanism is particularly beneficial in high-speed applications where heat buildup and wear can significantly affect performance.

Applications of Magnetic Powder Brakes

Due to their precise torque control and non-contact nature, magnetic powder brakes are used in a variety of industries, including:

      Printing: Ensures consistent tension control in printing presses to avoid damage to delicate materials.

      Textile Manufacturing: Used in weaving, knitting, and other textile processes where tension control is essential for high-quality products.

      Packaging: Helps maintain uniform tension in packaging lines, particularly in the production of flexible materials like plastic films.

      Conveyor Systems: Provides smooth speed regulation in conveyor belts, preventing damage to fragile items during transportation.

      Film and Paper Industry: Helps control tension in the winding and unwinding processes, preventing material breakage or wrinkles.

Advantages of Magnetic Powder Brakes

      Precise Control: Offers fine-tuned control over braking force, essential for delicate and high-speed operations.

      Long Service Life: The non-contact operation results in less wear and tear, leading to extended equipment life and reduced maintenance costs.

      Reliable Performance: Provides consistent braking force, ensuring smooth operation in complex machinery.

      Energy Efficient: Consumes less energy compared to traditional friction braking systems due to its non-contact nature.

How to Choose the Right Magnetic Powder Brake

Selecting the right Magnetic Powder Brake for your specific application is crucial to achieving optimal performance, efficiency, and reliability. Magnetic powder brakes offer precise torque control, non-contact operation, and reduced maintenance, but choosing the correct one depends on several key factors.

Consider the Application Requirements

Before choosing a magnetic powder brake, assess the specific requirements of your application:

      Torque Control Needs: Determine the range of torque needed for your operation. If your application requires precise tension control, look for a brake that offers adjustable torque with high precision.

      Speed and Load: The braking system must be capable of handling the speed and load requirements of your machinery. Be sure to select a brake that can manage the expected operational speeds and load conditions.

      Environmental Factors: Consider the environment in which the brake will operate. Some magnetic powder brakes are designed to perform well in harsh or high-temperature environments, while others may be more suited for clean, controlled settings.

Evaluate the Type of Magnetic Powder Brake

Different types of magnetic powder brakes provide various benefits, and choosing the right type will depend on the needs of your system:

      Constant Torque vs. Variable Torque: If your application requires consistent, unchanging torque, a constant torque magnetic powder brake is ideal. However, if the braking force needs to be adjusted dynamically, opt for a variable torque model.

      Automatic vs. Manual Control: Automatic control magnetic powder brakes are beneficial for applications requiring real-time adjustments and minimal manual intervention. On the other hand, manual control brakes are suitable for applications where operators need more hands-on adjustments.

Maintenance and Durability

Magnetic powder brakes are known for their low maintenance and long lifespan, but it’s important to consider the maintenance requirements of the specific model you are choosing:

      Easy Maintenance: Look for magnetic powder brakes with easy-to-access components for cleaning and maintenance.

      Durability: Consider the construction quality and materials used in the brake. Ensure it’s designed for the intended operating conditions (such as temperature, humidity, or potential exposure to chemicals).

Power and Control System Compatibility

Magnetic powder brakes are often part of a larger system, and it's essential to ensure compatibility with your machinery's power and control systems. Choose a brake that can integrate seamlessly with your existing setup, whether it's an electric, pneumatic, or hydraulic system.

Budget and Cost-Effectiveness

While magnetic powder brakes can be more expensive upfront than traditional braking systems, their long-term cost benefits (such as reduced downtime, minimal wear, and low maintenance costs) make them a cost-effective choice. Consider the overall return on investment (ROI) over the life of the brake.

Why Choose Magnetic Powder Brake from Ruian Chuangbo Machinery Co., Ltd.

Ruian Chuangbo Machinery Co., Ltd. has established itself as a leader in manufacturing Magnetic Powder Brakes, offering a combination of innovation, reliability, and precision that meets the highest industrial standards. Here’s why choosing a magnetic powder brake from Chuangbo is a smart decision for your business:

Quality and Reliability

Ruian Chuangbo Machinery Co., Ltd. uses only the highest-quality materials and advanced manufacturing techniques to produce magnetic powder brakes that are both reliable and durable. With a focus on quality control, the company ensures that every brake system meets strict performance and safety standards.

Customized Solutions

Understanding that each application has unique requirements, Chuangbo offers customized solutions tailored to your specific needs. Whether you require adjustments in torque control, power, or size, Chuangbo can provide a solution that fits perfectly within your existing machinery.

Advanced Technology and Innovation

Chuangbo keeps pace with technological advances in the braking industry. Their magnetic powder brakes integrate cutting-edge technology to ensure high-performance capabilities, such as advanced control systems, improved energy efficiency, and greater precision in torque control.

Extensive Experience

With years of experience in the industry, Ruian Chuangbo Machinery Co., Ltd. has a deep understanding of the needs and challenges faced by businesses in various sectors. Their expertise allows them to deliver effective, tailored braking solutions that maximize productivity and minimize downtime.

Exceptional Customer Support

Chuangbo is committed to providing excellent customer service, from the initial consultation to after-sales support. Their team is ready to assist with installation, troubleshooting, and maintenance to ensure your magnetic powder brake system operates smoothly throughout its lifespan.

Technological Advances in Magnetic Powder Brakes

The field of magnetic powder brakes has evolved significantly over the years, with advancements that continue to improve their performance, efficiency, and reliability. Some of the key technological advances in magnetic powder brakes include:

Enhanced Control Systems

Modern magnetic powder brakes feature advanced control systems that allow for even finer control over torque and braking force. Digital controls and automated feedback systems make it easier to achieve real-time adjustments, leading to more precise tension regulation and better overall performance.

Integration with IoT and Smart Technology

With the rise of Industry 4.0, magnetic powder brakes are increasingly being integrated with smart technologies. This includes the ability to connect to the Internet of Things (IoT), allowing real-time monitoring and diagnostics of braking systems. Such integration enables predictive maintenance, reducing unexpected downtime and improving system reliability.

Improved Magnetic Powder Materials

Advancements in magnetic powder materials have resulted in stronger, more durable powders that offer higher resistance, increased lifespan, and better performance in extreme conditions. These materials are more efficient in transmitting braking force, ensuring smoother operation in high-speed applications.

Energy Efficiency

Recent technological improvements have focused on making magnetic powder brakes even more energy-efficient. Enhanced electromagnetic designs and more efficient control mechanisms help reduce the energy consumption of the system, making these brakes more cost-effective and environmentally friendly.

Reduced Size and Weight

Technological advances in materials and design have led to the development of compact, lightweight magnetic powder brakes that are easier to integrate into existing systems without sacrificing performance. These smaller brakes are particularly beneficial for industries with limited space or applications that require a lighter overall system weight.

When selecting a magnetic powder brake, it is essential to understand the specific requirements of your application, including torque control, speed, and maintenance needs. By choosing a reliable, innovative manufacturer like Ruian Chuangbo Machinery Co., Ltd., you can ensure high performance, durability, and precision in your braking system. Additionally, keeping up with technological advances in magnetic powder brakes will enable your operations to remain cutting-edge, energy-efficient, and cost-effective.
